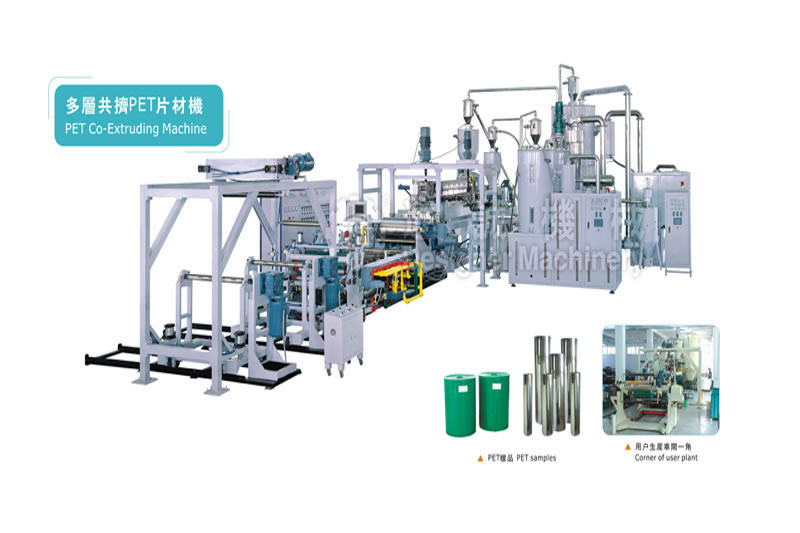

PET Multilayer Sheet Co-Extruder

Description
The packaging sheet provided by multi-layer PET sheet co-extrusion line not only can separate the air, but also can separate the smell from packaged products, which highly extend the shelf life of packaged products. Our PET sheet co-extrusion production line changes the laminated structure (add filling material), thus largely reduce the production cost.
Applications
The multi-layer PET sheet co-extrusion line adopts co-extrusion technology to produce multi layer co-extrusion composite sheet. Such as APET/PETG, PETG/APET/PETG, APET/RPET/APET, etc. It is widely used in the area of thermal forming sheet, printing, metals packaging, etc.
Features
1. This kind of PET sheet co-extrusion production line is equipped with high precision feed box, thus makes the layering homogenous and the proportion of different layer can be regulated.
2. Horizontal pressure structure leads to convenient operation and maintenance.
3. Roller has independent power, thus the line speed and extruder speed is controlled synchronous.
4. This kind of multi-layer PET sheet co-extrusion line adopts PLC control system to automatically control the parameter setting, data computing and back, alarm and so on.

parameters

Model No.	WJP90-1000	WJP105-1000	WJPG90/50-1000	WJPG105/65-1000	WJPG120/65-1600
Suitable materials	APET/PETG/RPET	APET/PETG/RPET	APET/PETG/RPET	APET/PETG/RPET	APET/PETG/RPET
Screw size	Φ90×34	Φ105×34	Φ90×34, Φ50×33	Φ105×34, Φ65×33	Φ120×33, Φ65×33
Layer device	1	1	≤3	≤3	≤3
Sheet thickness	0.12-2.0mm	0.12-2.0mm	0.12-2.0mm	0.12-2.0mm	0.12-2.0mm
Sheet width	≤700mm	≤700mm	≤700mm	≤700mm	≤1400mm
Max throughput	250-350kg/h	350-450kg/h	300-400kg/h	450-550kg/h	600-800kg/h
Total capacity	245kw	320kw	300kw	385kw	435kw
